Mixers

SAS MIXERS ensure efficient blending of soap pellets with additives, offering two specialized models: the SASMIX - Open Sigma (Z) Mixer, and the DSM - Double Arm Sigma Mixer.

Mixers are essential machines in the soap and chemical industries, designed to blend raw materials efficiently to achieve homogeneous compositions. They play a crucial role in integrating solid and liquid additives into a uniform mixture, ensuring consistency and quality in the final product.

SAS offers two specialized types of mixers tailored to different mixing requirements:

SASMIX - Open Sigma (Z) Mixer: Ideal for thoroughly mixing soap pellets with various additives, featuring an open design for easy cleaning and maintenance.
DSM - Double Arm Sigma Mixer: Designed for intensive mixing, breaking down pellets to enhance ingredient penetration, with a jacketed mixing bowl for precise temperature control.

Both mixers are built with high-quality stainless steel and engineered for durability, efficiency, and compliance with international safety standards.

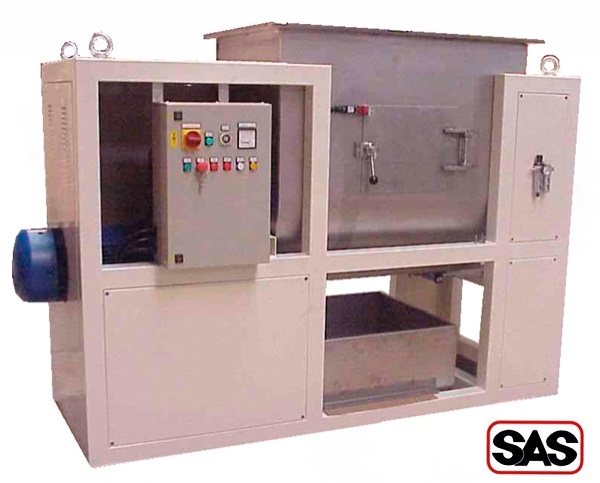

SASMIX - Open Sigma (Z) Mixer

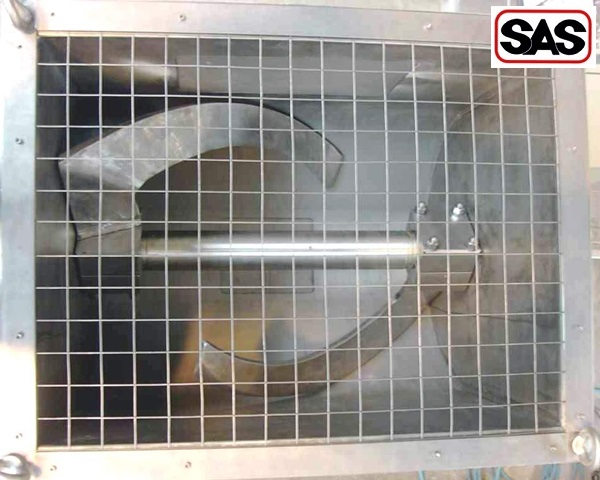

The SASMIX - Open Sigma Mixers are designed for efficiently blending soap pellets with various liquid and solid additives. Their open "Z"-shaped blades ensure thorough mixing while allowing for quick and easy cleaning.

Key features include:

Convenient access: A side door for inspection and cleaning.
Efficient discharge: A pneumatically operated bottom discharge door with interlock microswitches.
Robust construction: The blade shaft runs on self-aligning roller bearings within a grease-lubricated sealing box.
Reliable drive system: Powered by an electric motor with pulleys, V-belts, and a helical gear speed reducer lubricated in an oil bath.
Hygienic and durable: All contact parts are made of AISI 304 stainless steel for maximum hygiene and durability.
Safety compliance: Equipped with standard safety features and customizable to meet specific local regulations.

These mixers are typically positioned under weigh scales for seamless integration into production lines.

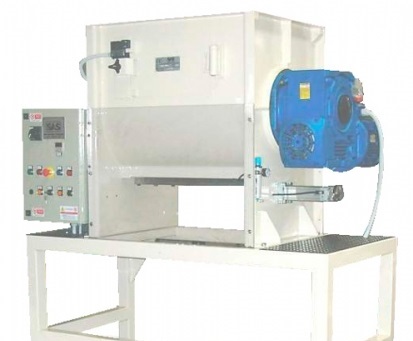

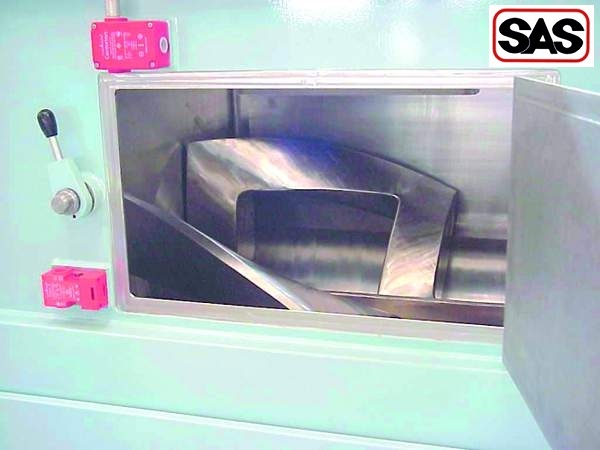

DSM - Double Arm Sigma Mixer

The DSM - Double Arm Sigma Mixers are designed for intensive and micromixing, ensuring that soap pellets are thoroughly broken down to maximize surface exposure and ingredient penetration.

Key Features:

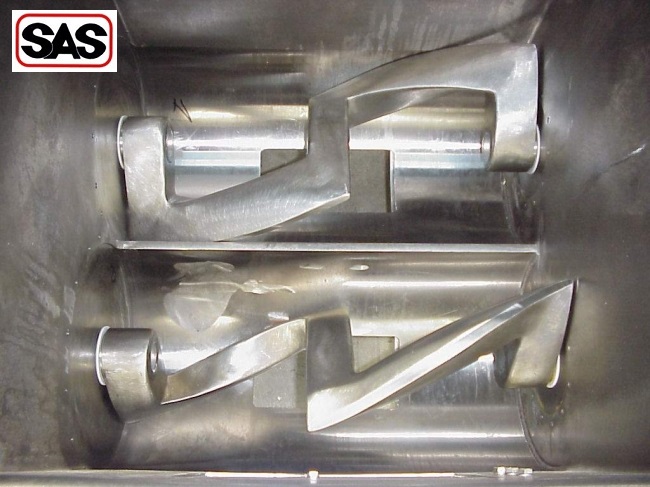

Powerful Mixing: Equipped with two massive, tangential counter-rotating Sigma blades for high-performance blending.
High-Quality Materials: Blades are machined from AISI 316 stainless steel (other materials available on request).
Robust Construction: Supported by heavy-duty roller bearings and driven by independent motor-reducer units.
Sealed System: Special packing rings on each blade prevent contamination by sealing off the mixing area from bearings and drive components.

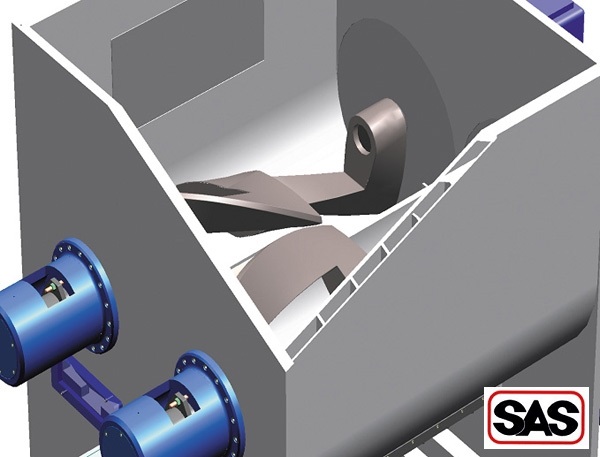

Temperature Control: The jacketed mixing bowl allows for both heating and cooling applications, with internal baffles optimizing heat transfer through a zigzag water flow.
Hygienic & Durable: All product-contact surfaces are made from AISI 304 stainless steel for durability and cleanliness.

These mixers are engineered for efficiency, reliability, and precision, making them ideal for demanding production environments.
