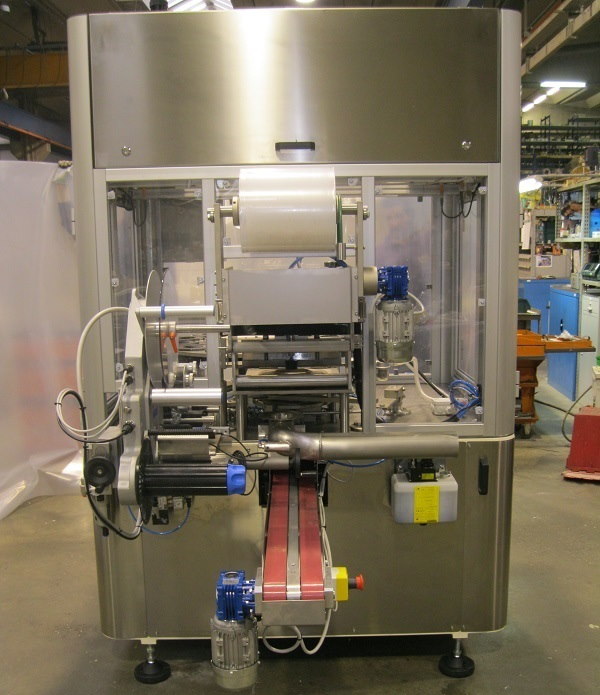

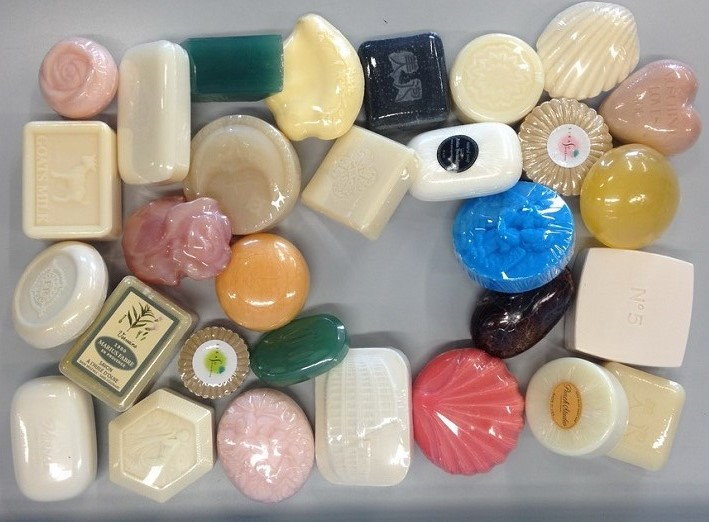

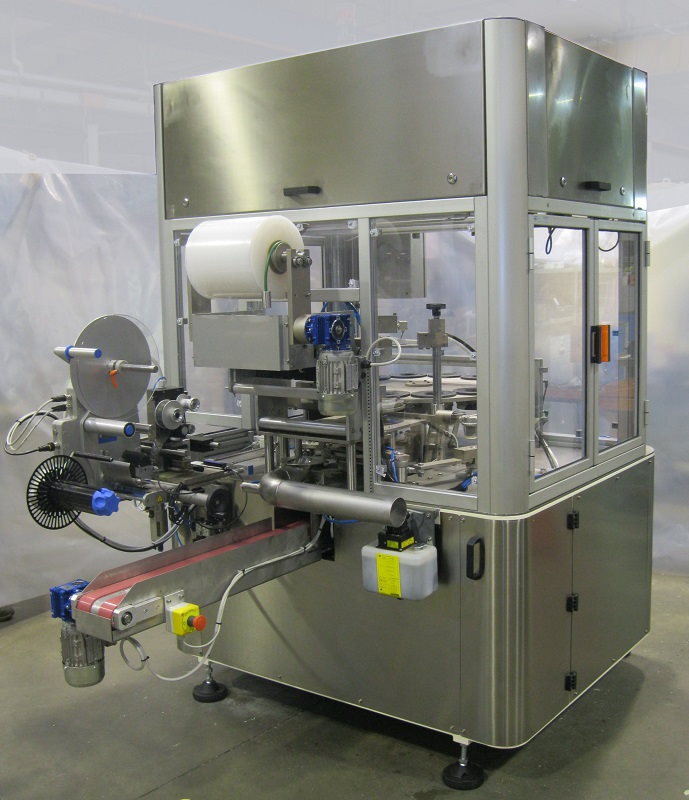

The GUERZE FILMEX/35 wrapping machine is suitable to wrap toilet soap bars with transparent stretch-film material from reel at a speed of 35 wraps per minute. Soap bars shapes can be banded, bandless and special; the great majority of the commercially available dimensions can be processed.

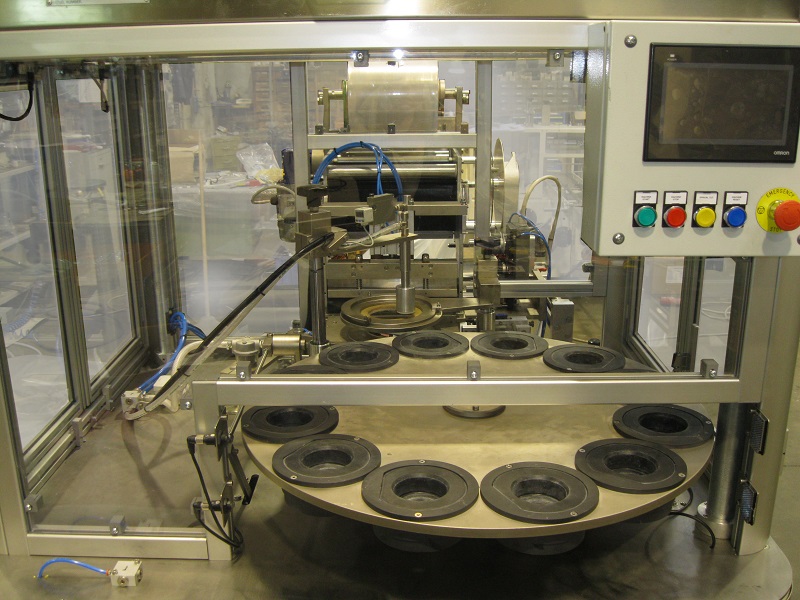

The soap bar is fed in one of the rubber pockets of the rotating disk, reaches the wrapping station where a suction-cup takes it from the disk and push down to meet the film which has already been cut and placed between the soap bar and the wrapping head. During the lowering the film is stretched then the wrapping head complete the operation by means of an iris; the excess of film is cut by a hot knife and is separately discharged. The wrapped and sealed soap bar is immediately labeled before being dropped onto an outlet soft belt conveyor.
