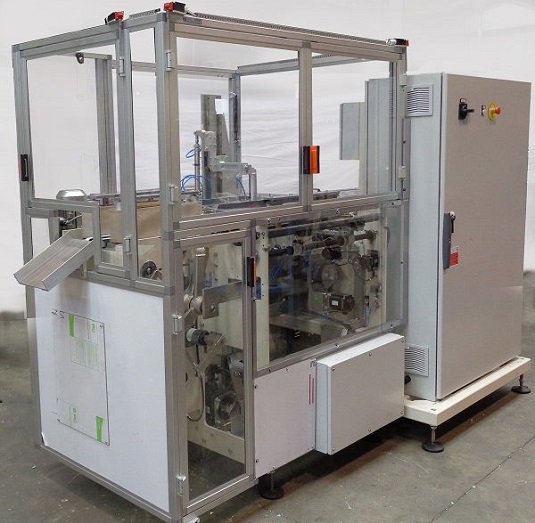

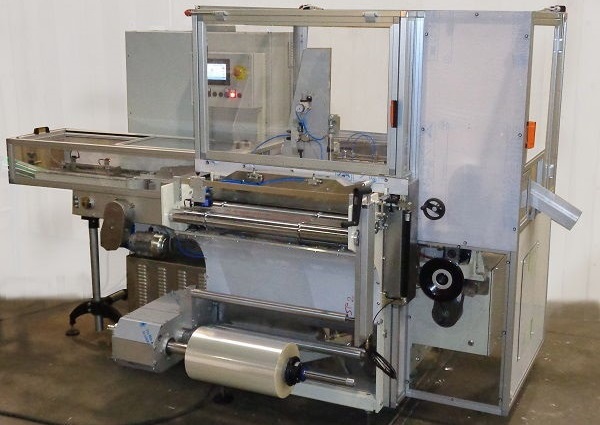

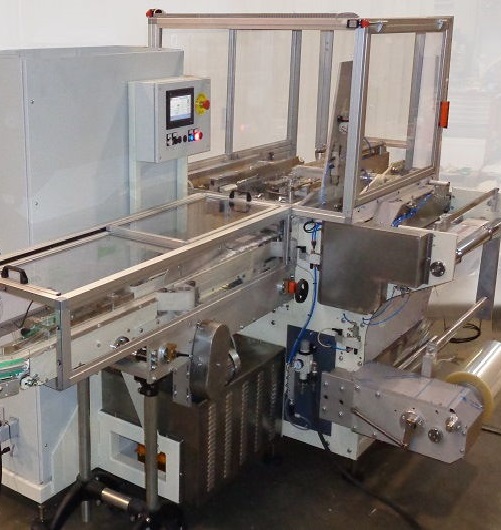

The SAVONPACK soap bundling machine can be fed with cartoned, wrapped or naked soap bars (and any compatible product) arriving from the upstream machine.

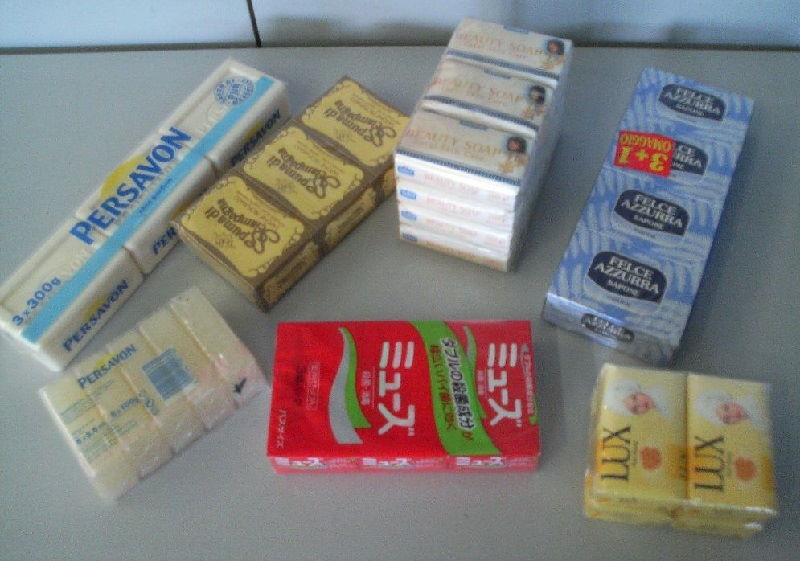

The core machine is of standard, sturdy design and can be completed and customized with different upstream and downstream kits for the suitable combination of operations necessary to obtain the requested soap bundle (multi-pack of soaps).
The soap wrapping material is usually BOPP (bi-oriented polypropylene) or polyethylene or different plastic films from continuous reel.
A typical SAVONPACK bundler is complete with:
Straight Version: infeed conveyor in-line with the outlet (S2 or M2 or D2 configuration)
90° version: infeed conveyor orthogonal with the outlet (S1 or M1 or D1 configuration)
TWO separately driven Elevating Plates to lift up the required number of soaps
Stacking Mechanism for the soap bundles of multi-layers
Upender or Water-Fall for the formation of soap bundles with on-edge soap bars (S1 or S2, version A)
Dual-Lane Splitter for the formation of bundles with soap bars in different raws
Reel-holders at 90° compared with the product outfeed
Print Registration Device
Sealing station for the longitudinal seal
Outfeed Side-Sealing Station with moving Teflon belts for the double-point end folds
